Our Products

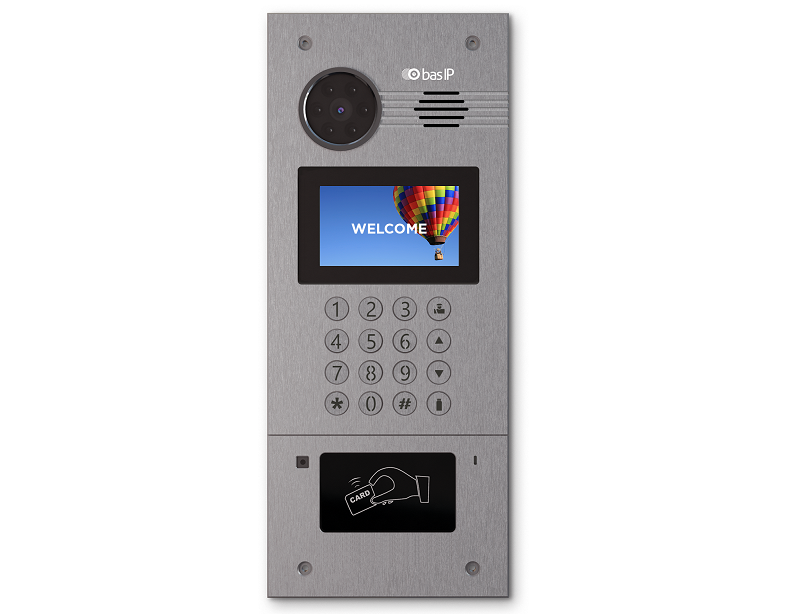

Bas-IP Multi-Apartment Metal Entrance Panel

AA-07B SILVER multi-apartment metal entrance panel is just perfect for office buildings, apartment
complexes, and cottage settlements.
The discussed model incorporates vandal-proof metal mechanical buttons. Thanks to the additional
illumination of the buttons, it will be easier for the user to dial the number of the apartment even at night.

Part No. AA-07B

Category IP Outdoor Entrance Panels
Bas-IP Multi-Apartment Metal Entrance Panel
Bas-IP Multi-Apartment Metal Entrance Panel
Bas-IP Multi-Apartment Metal Entrance Panel
Bas-IP Multi-Apartment Metal Entrance Panel
  • Panel type: Multi-apartment.
  • Display: 4.3’’ TFT, color with backlight.
  • Keypad: Backlight mechanical buttons.
  • Camera: 1/4”, camera direction adjustment.
  • Angle: 80° horizontal x 64° vertical.
  • Resolution: 1 Мp.
  • Output video: HD (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 6,5 W, in standby — 3,6 W.
  • Power supply: +12 V DC.
  • Body: Steel.
  • Colors: Silver.
  • Dimensions for installation: 140 × 350 × 60 mm.
  • Size of the panel: 155 × 375 × 55 mm.
  • Installation: Flush, surface with BR-AA bracket.

Firmware Download

Data Sheet

Bas-IP Multi-Apartment Metal Entrance Panel

Bas-IP Multi-Apartment Metal Entrance Panel
  • Panel type: Multi-apartment.
  • Display: 4.3’’ TFT, color with backlight.
  • Keypad: Backlight mechanical buttons.
  • Camera: 1/4”, camera direction adjustment.
  • Angle: 80° horizontal x 64° vertical.
  • Resolution: 1 Мp.
  • Output video: HD (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 6,5 W, in standby — 3,6 W.
  • Power supply: +12 V DC.
  • Body: Steel.
  • Colors: Silver.
  • Dimensions for installation: 140 × 350 × 60 mm.
  • Size of the panel: 155 × 375 × 55 mm.
  • Installation: Flush, surface with BR-AA bracket.

Firmware Download

Part No. AA-07B
Category IP Outdoor Entrance Panels

Description

  • Panel type: Multi-apartment.
  • Display: 4.3’’ TFT, color with backlight.
  • Keypad: Backlight mechanical buttons.
  • Camera: 1/4”, camera direction adjustment.
  • Angle: 80° horizontal x 64° vertical.
  • Resolution: 1 Мp.
  • Output video: HD (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 6,5 W, in standby — 3,6 W.
  • Power supply: +12 V DC.
  • Body: Steel.
  • Colors: Silver.
  • Dimensions for installation: 140 × 350 × 60 mm.
  • Size of the panel: 155 × 375 × 55 mm.
  • Installation: Flush, surface with BR-AA bracket.

Firmware Download
