Our Products

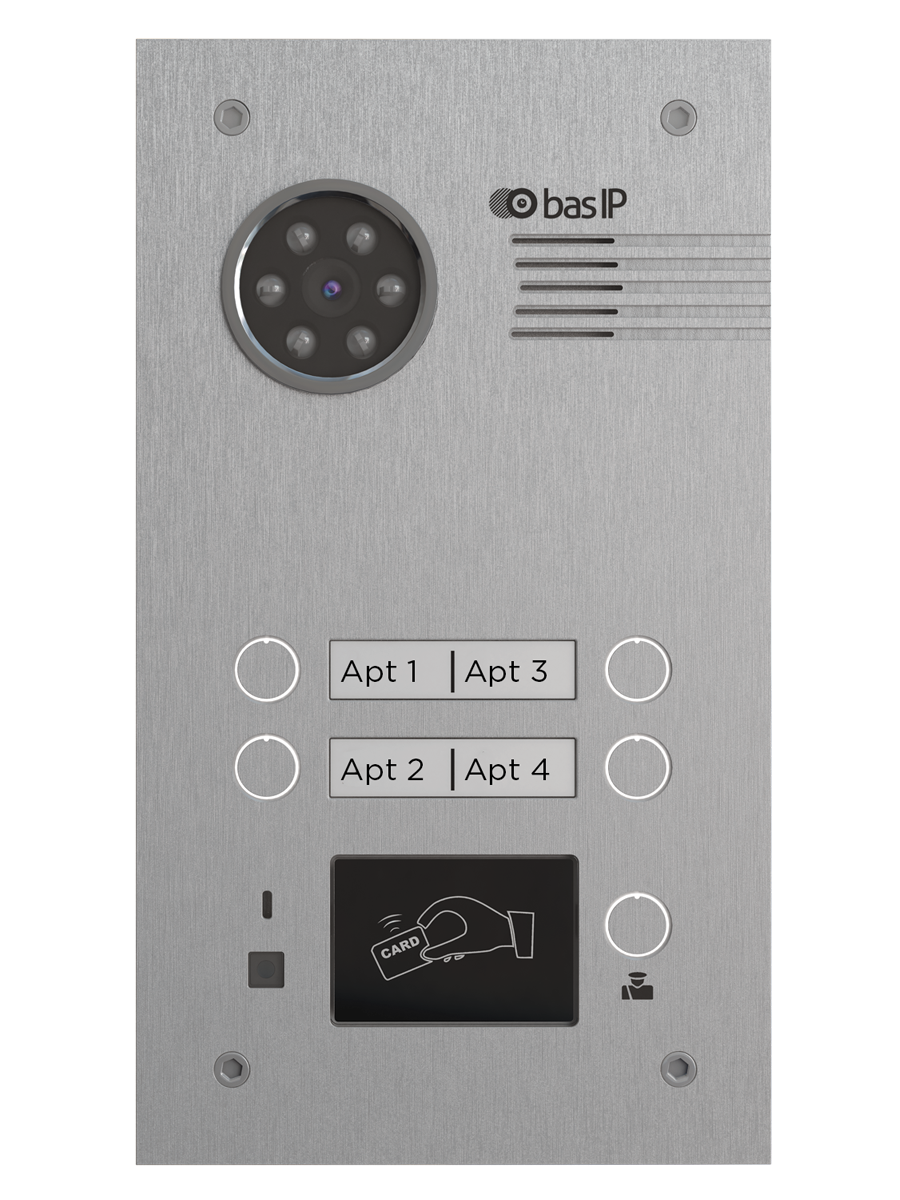

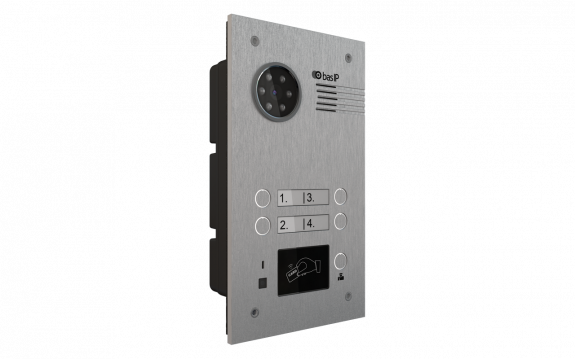

BAS-IP 4 Button Entrance Panel

BAS-IP BA-04BD is 4-button panel incorporating cutting-edge technical features and stunning design..
The BA-04BD supports contactless cards, the new BAS-IP UKEY application, as well as has a built-in camera, which provides video output in 720p. resolution.
This panel is exceptionally durable, for its protection class is IP65.

Part No. BA-04BD

Category IP Outdoor Entrance Panels
BAS-IP 4 Button Entrance Panel
BAS-IP 4 Button Entrance Panel
BAS-IP 4 Button Entrance Panel
BAS-IP 4 Button Entrance Panel
BAS-IP 4 Button Entrance Panel
BAS-IP 4 Button Entrance Panel
  • Panel type: Multi button.
  • Display: No.
  • Camera: 1/4”, adjustable camera angle by 15°.
  • Angle: 80° horizontal x 52° vertical.
  • Resolution: 1 Мp.
  • Output video: 720p (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 5,5 W, in standby — 2,5 W.
  • Power supply: +12 V DC, PoE.
  • Body: Metallic.
  • Colors: Silver.
  • Dimensions for installation: 142 × 245 × 60 mm.
  • Size of the panel: 155 × 270 × 50 mm.
  • Installation: Flush, surface with BR-BA bracket



      Firmware Download



DataSheet

BAS-IP 4 Button Entrance Panel

BAS-IP 4 Button Entrance Panel
  • Panel type: Multi button.
  • Display: No.
  • Camera: 1/4”, adjustable camera angle by 15°.
  • Angle: 80° horizontal x 52° vertical.
  • Resolution: 1 Мp.
  • Output video: 720p (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 5,5 W, in standby — 2,5 W.
  • Power supply: +12 V DC, PoE.
  • Body: Metallic.
  • Colors: Silver.
  • Dimensions for installation: 142 × 245 × 60 mm.
  • Size of the panel: 155 × 270 × 50 mm.
  • Installation: Flush, surface with BR-BA bracket



      Firmware Download



Part No. BA-04BD
Category IP Outdoor Entrance Panels

Description

  • Panel type: Multi button.
  • Display: No.
  • Camera: 1/4”, adjustable camera angle by 15°.
  • Angle: 80° horizontal x 52° vertical.
  • Resolution: 1 Мp.
  • Output video: 720p (1280 × 720), H.264 Main Profile.
  • Night backlight: 6 LEDs.
  • Light sensitivity: 0,01 Lux.
  • Protection class: IP65.
  • Working temperature: -40 — +65 °С.
  • Power consumption: 5,5 W, in standby — 2,5 W.
  • Power supply: +12 V DC, PoE.
  • Body: Metallic.
  • Colors: Silver.
  • Dimensions for installation: 142 × 245 × 60 mm.
  • Size of the panel: 155 × 270 × 50 mm.
  • Installation: Flush, surface with BR-BA bracket



      Firmware Download
